Ajax Curtain Outdoor Mini Jeweller Wireless dual-technology curtain motion detector for outdoor and indoor use

Product Description

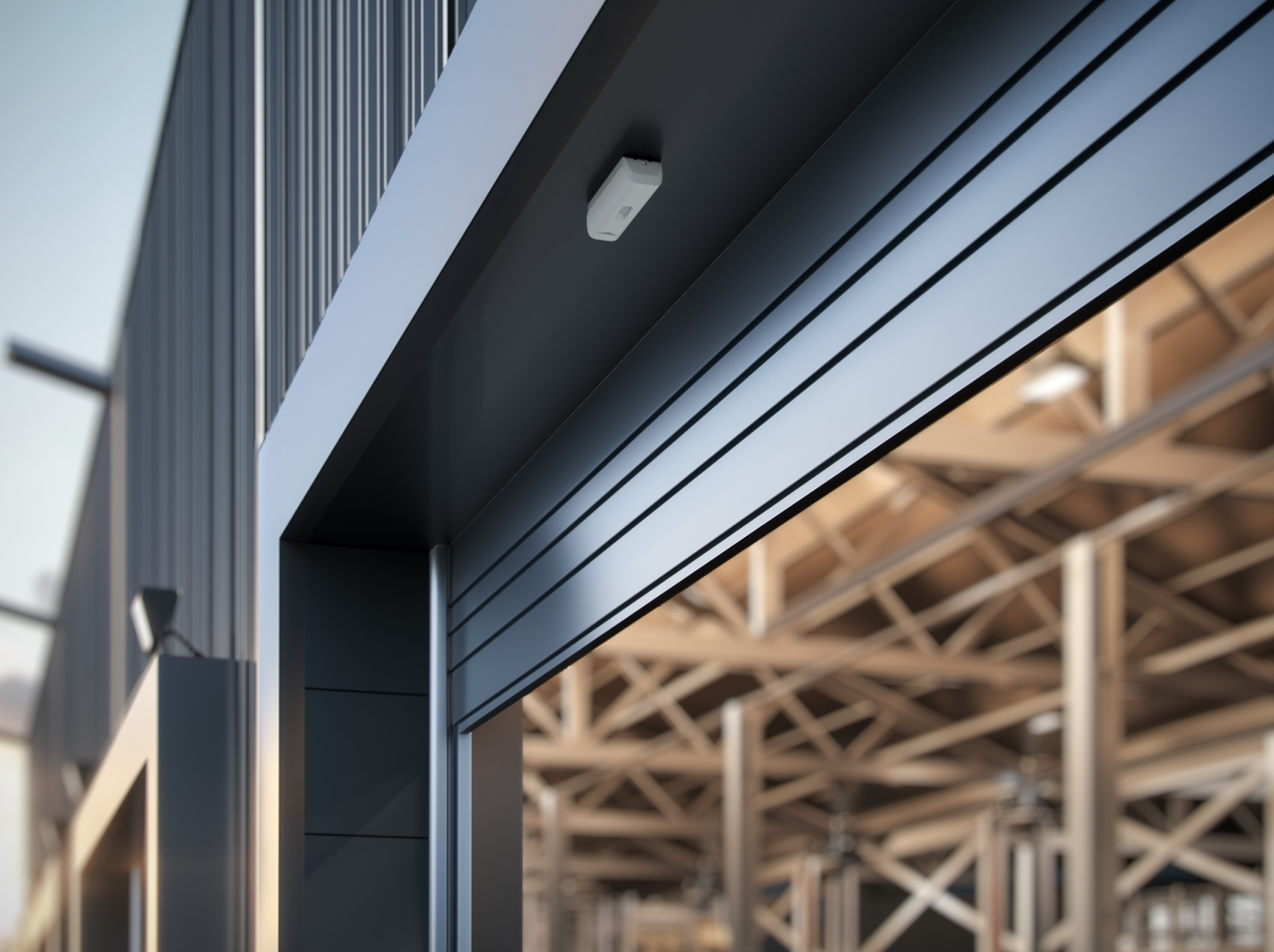

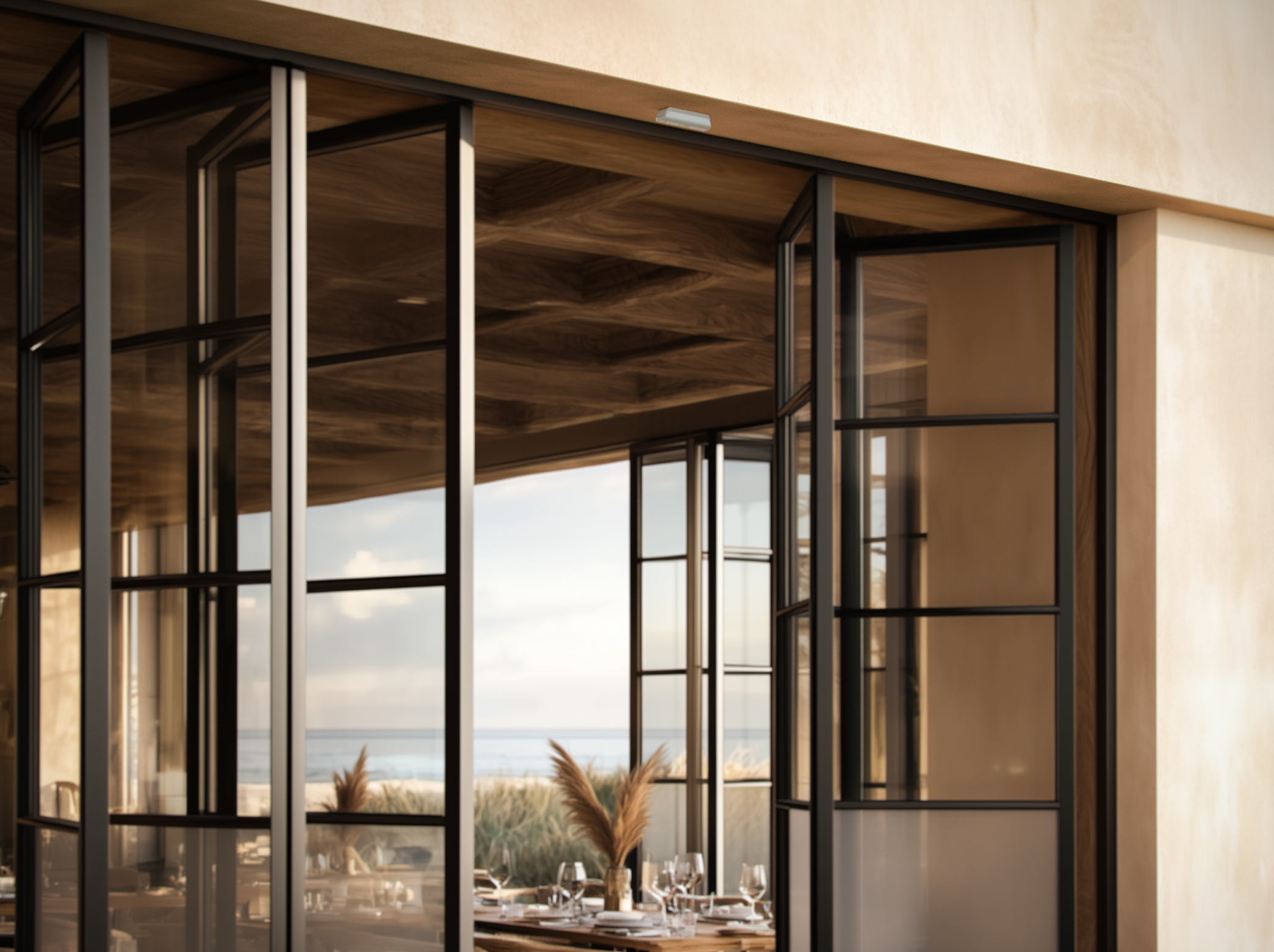

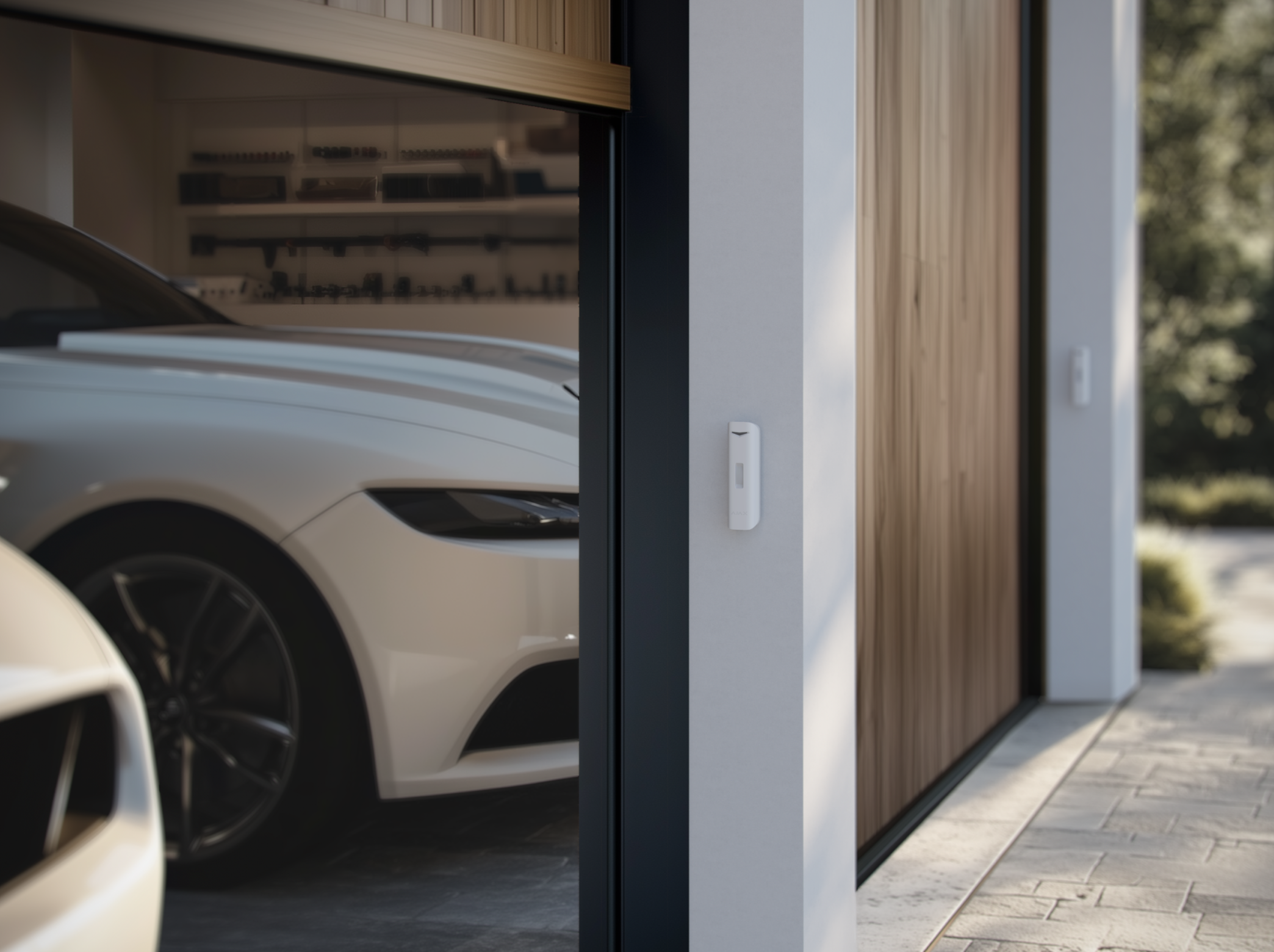

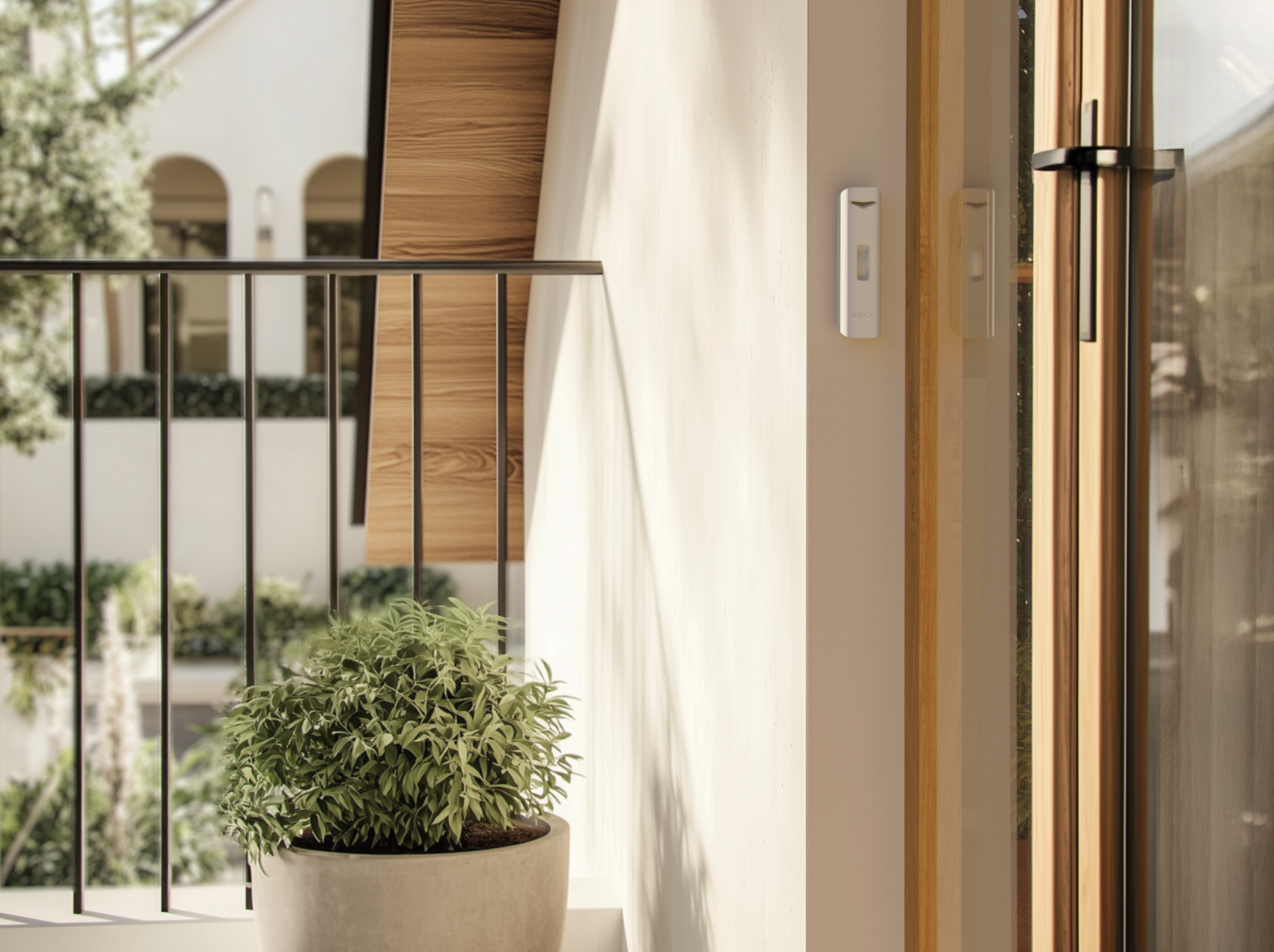

The Curtain Outdoor Mini Jeweller is a wireless, curtain-type motion detector designed to provide precision protection for perimeter openings both outdoors and indoors. It projects a specialized narrow beam—featuring a 15° horizontal and a wide 100° vertical detection angle—creating a protective digital barrier over critical entry points like window frames, doors, garage openings, and narrow pathways without interfering with ambient activity. Built with a two-stage motion detection system that combines passive infrared (PIR) and K-band microwave technology, the device applies a "SmartDetect" algorithm to rigorously filter out environmental interferences and eliminate false alarms. Housed in a compact enclosure ideal for narrow spaces, the detector integrates seamlessly into the Ajax ecosystem, utilizing secure Jeweller and Wings radio protocols to achieve long-range communication and delivering up to 3 years of completely autonomous battery operation.

Key Features

• Dual Technology for False Alarm Immunity: Uses a sophisticated, two-stage combination of thermal (PIR sensor) and radio-frequency (K-band microwave sensor) analysis to filter out air flows, swaying bushes, or exhaust fans.

• SmartDetect Algorithm: Analyzes parameters such as IR radiation intensity, thermal spot size, and movement speed to verify human presence and guarantee true threat detection.

• Narrow Beam & Targeted Coverage: Features a specialized optical system with a narrow 15° horizontal field of view and a wide 100° vertical viewing angle to secure boundaries and areas close to walls or ledges.

• 5-Meter Detection Range: Effectively monitors specific perimeter areas up to a distance of 5 meters (16.4 feet).

• Advanced Anti-Masking System: Detects malicious attempts to block, paint over, or tape the lens from up to 5 cm away, immediately alerting users and the monitoring station.

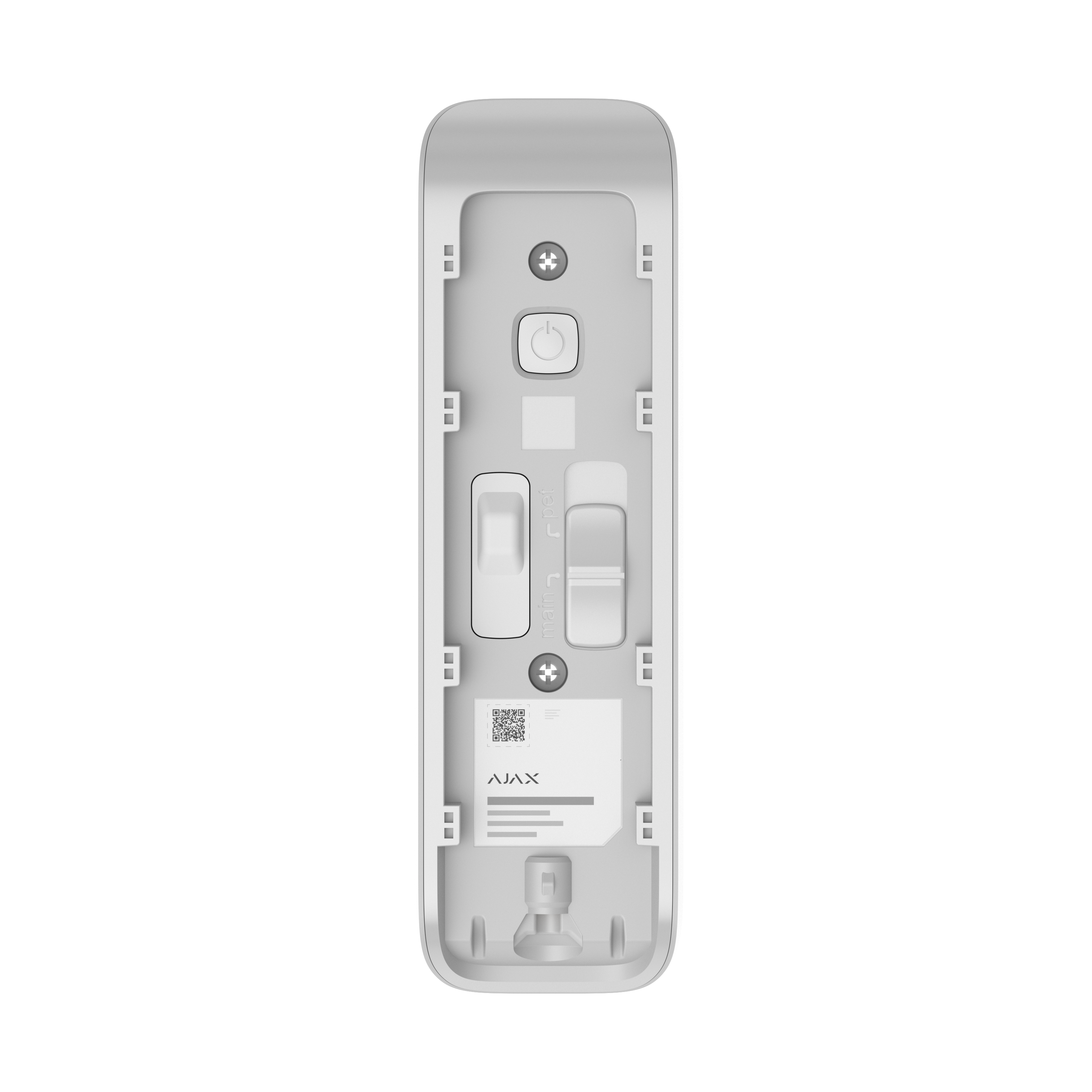

• Pet Immunity Mode: Includes a physical slider switch on the enclosure to activate a mode that ignores animals up to 70 cm (2.3 feet) tall when installed at the recommended height of 1 meter.

• Temperature Correction: Implements digital temperature compensation to ensure precise detection even when ambient temperatures approach human body temperature.

• Dual-Protocol Wireless Communication: Uses proprietary Jeweller technology for instant transmission of alarms/events and Wings for reliable over-the-air firmware updates and diagnostics.

• Extended Wireless Range: Maintains stable, secure two-way communication with a compatible Ajax hub at a range of up to 1,700 meters (5,550 feet) in open spaces.

• Outstanding Energy Efficiency: Comes with pre-installed batteries that deliver up to 3 years of completely autonomous operation.

• Intelligent Power Monitoring: Features a "Notify on risk of fast battery discharge" setting that alerts users via the Ajax app if an incorrect installation (e.g., facing a busy street) is causing excessive triggers and rapid power drain.

• Effortless Setup and Remote Configuration: Pairs instantly to an Ajax hub via QR code scanning, allowing installers to adjust sensitivity, test detection zones, and configure automation scenarios completely through the mobile or desktop app. Recommended installation height is 1 M (for pets) or 2.4 M. Can also be mounted horizontally.
