Ajax KeyPad Outdoor Jeweller

Product Description

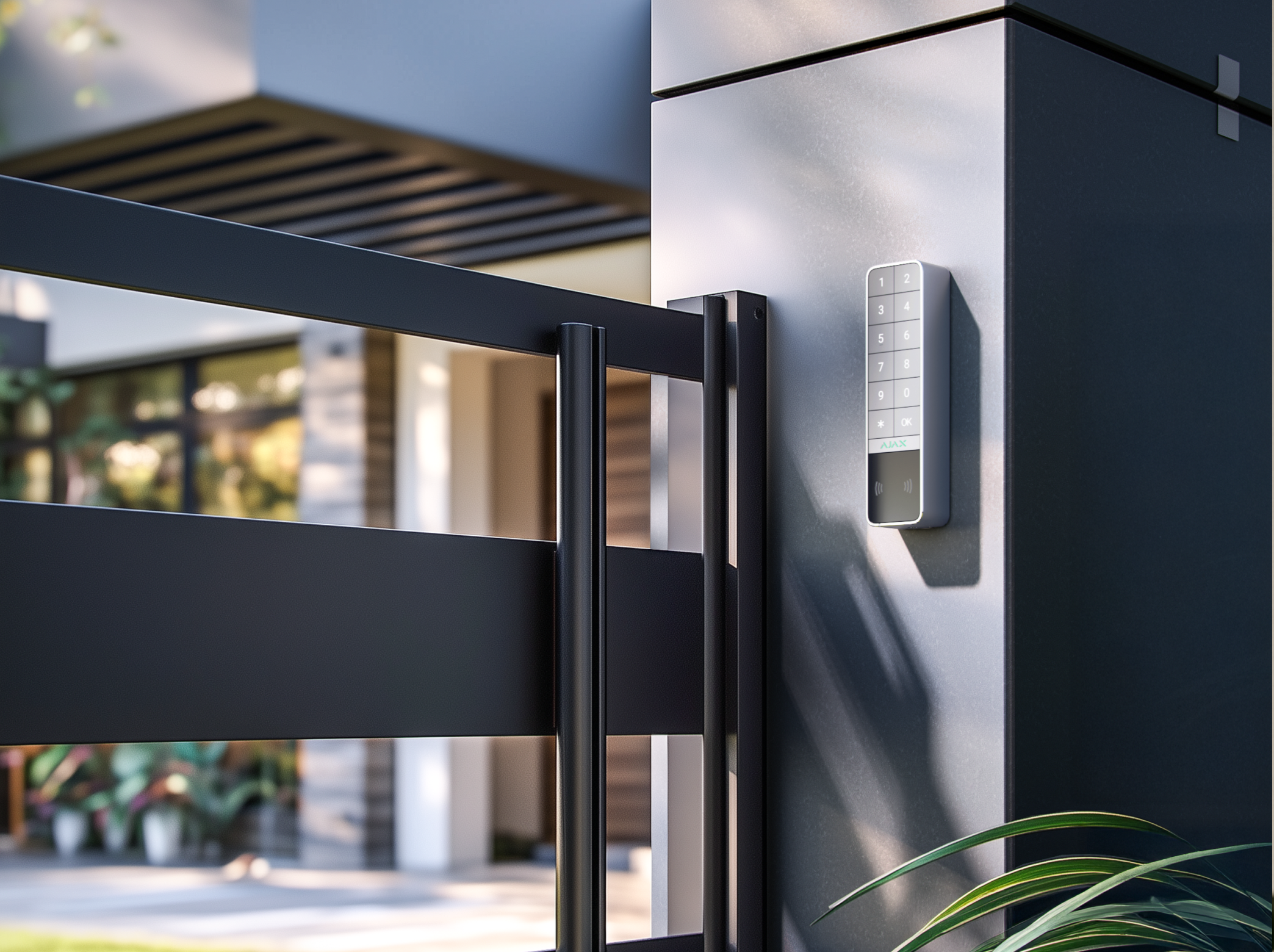

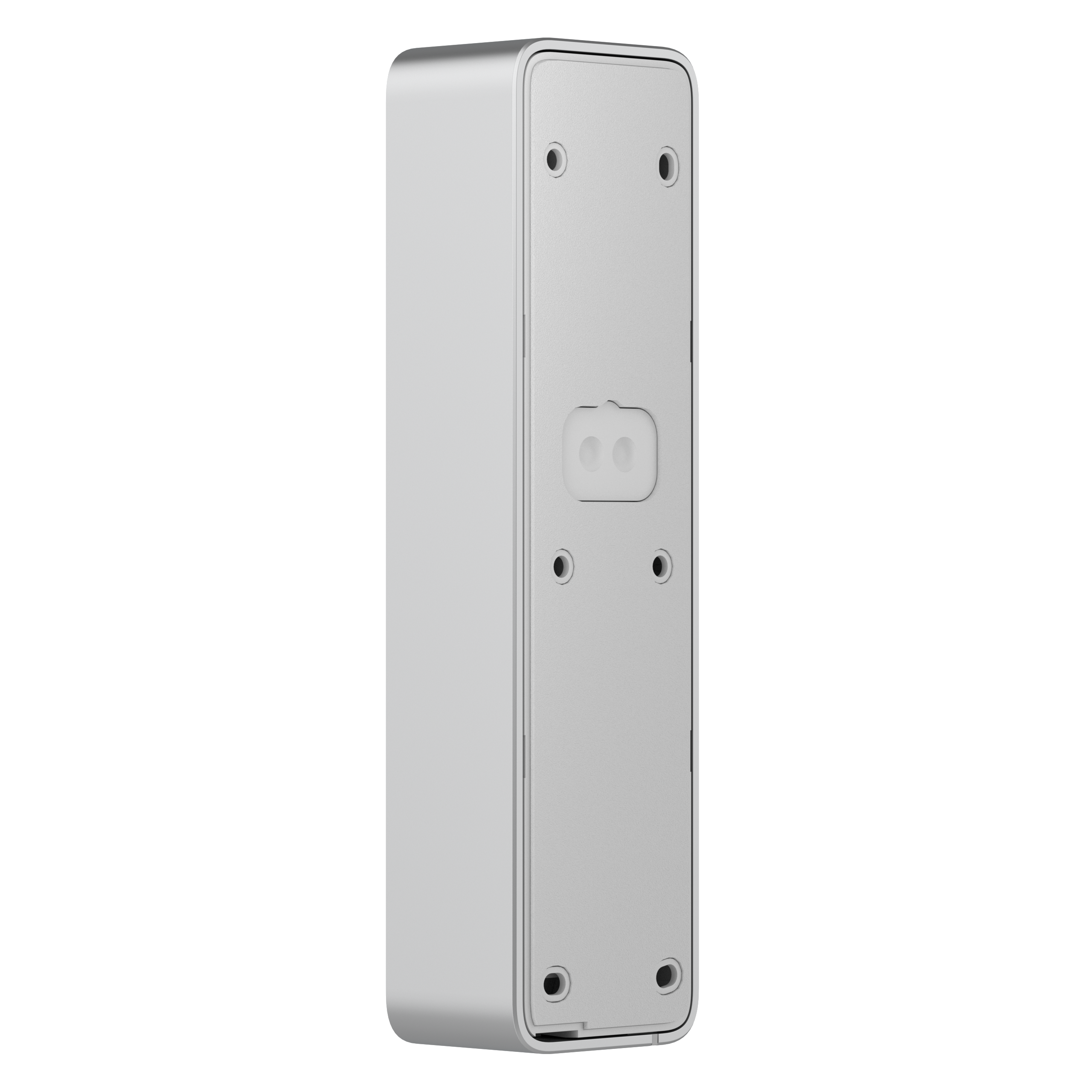

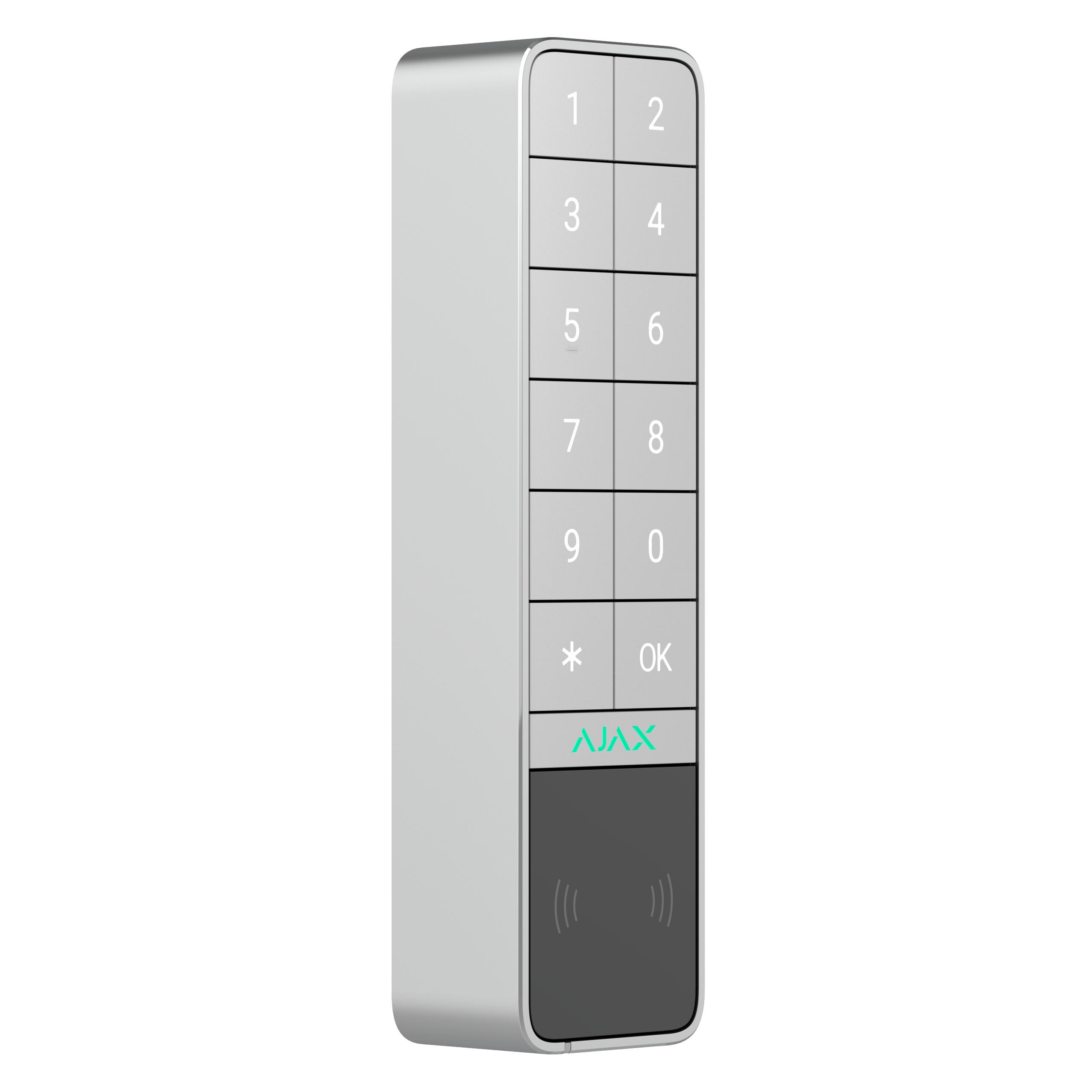

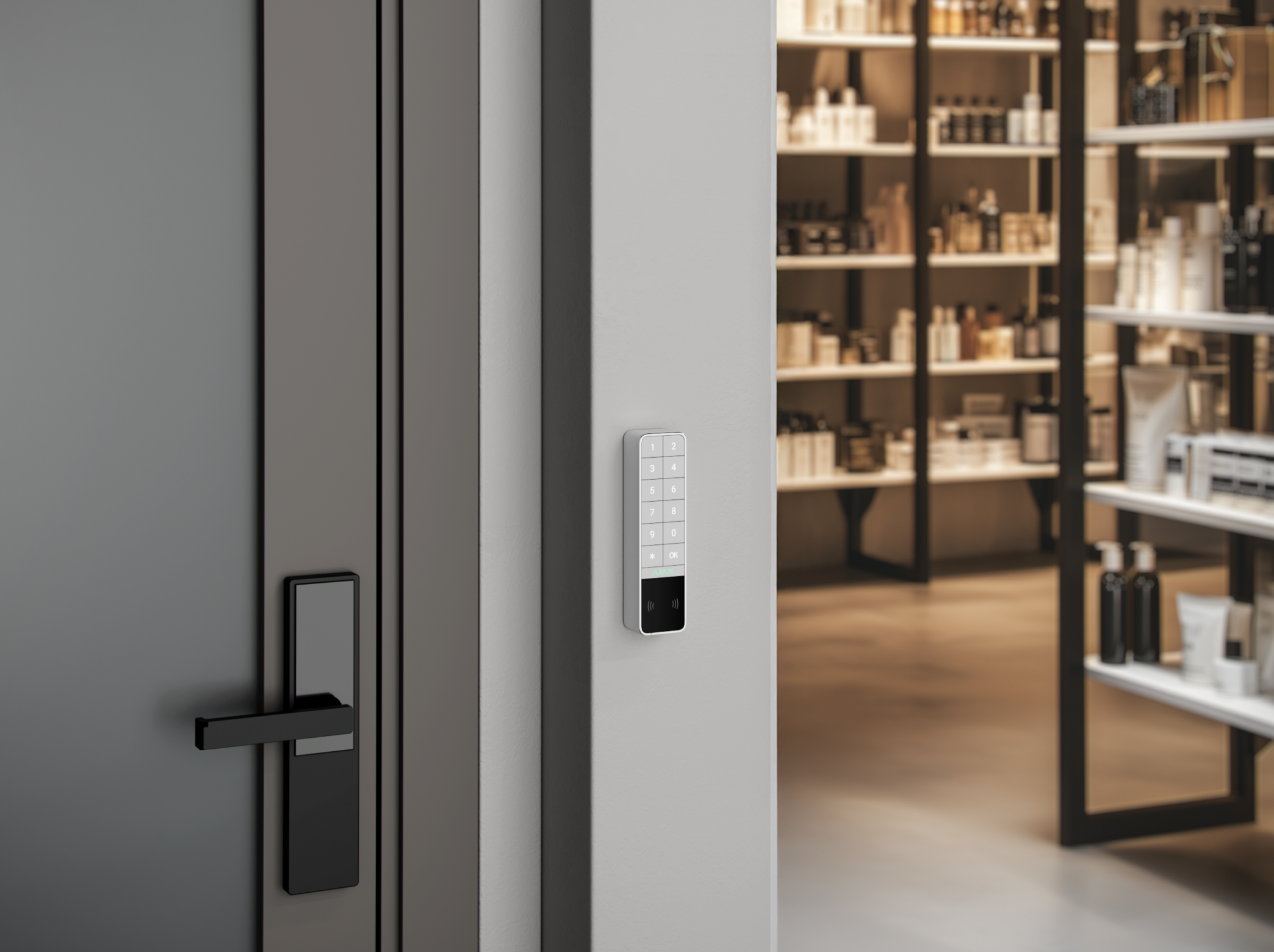

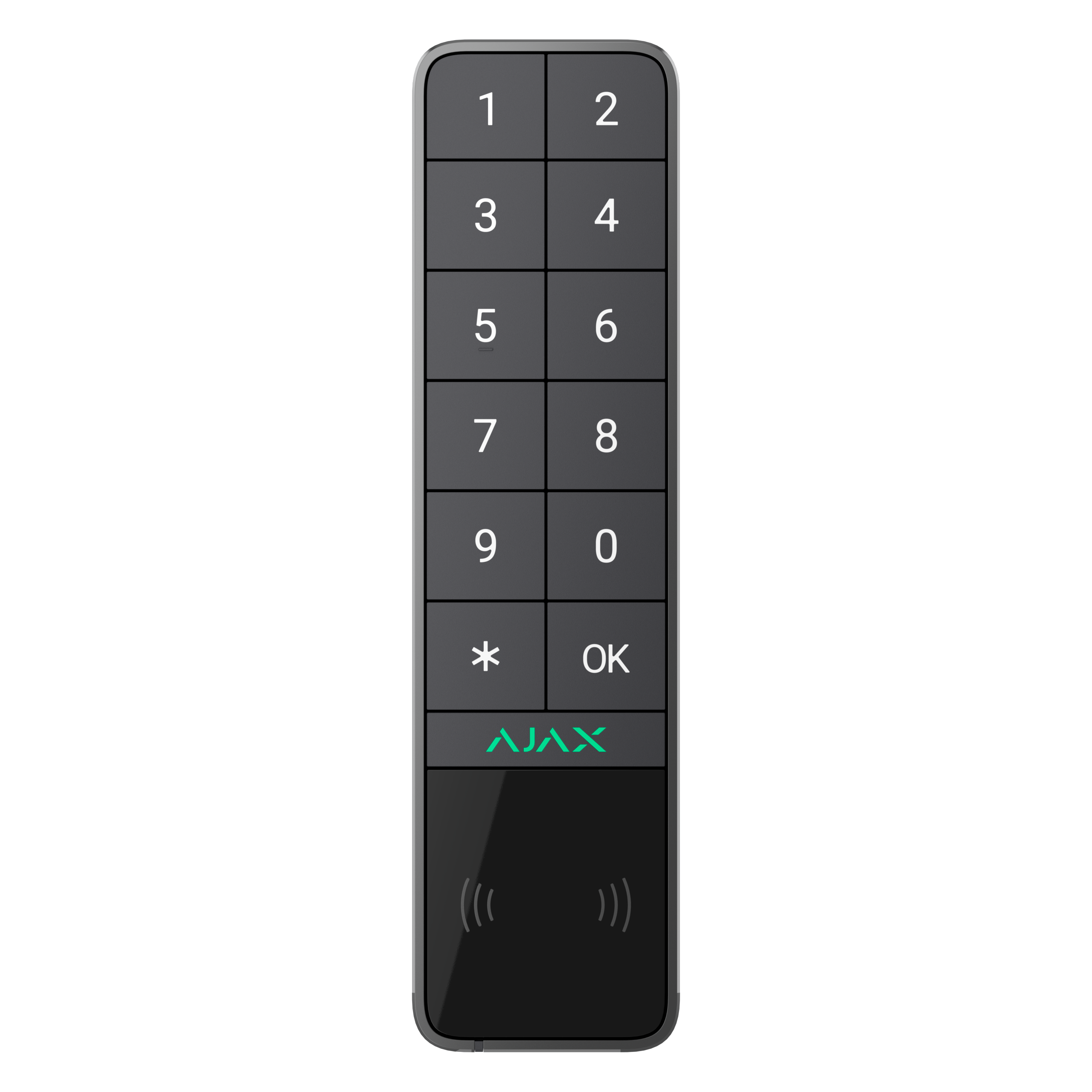

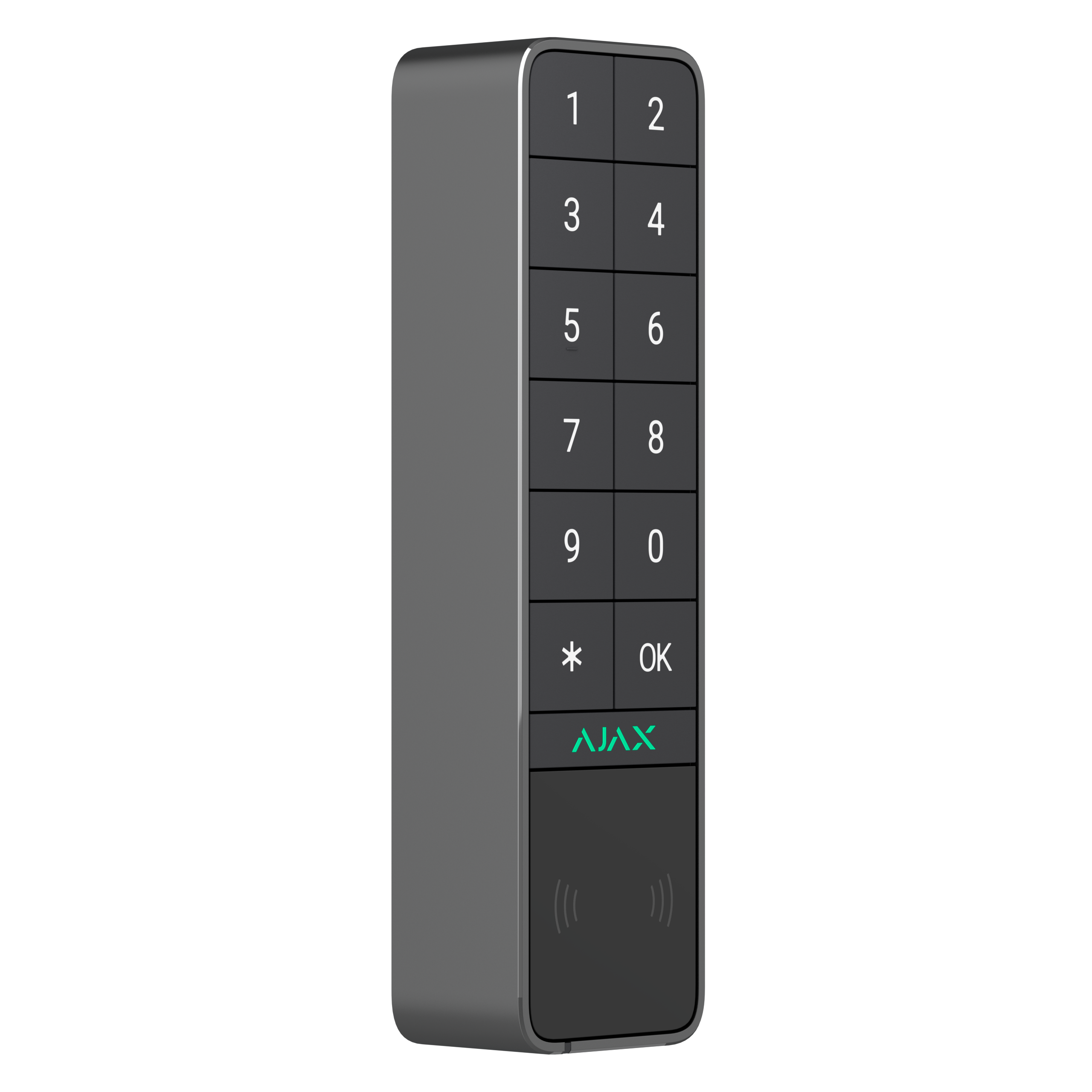

The Ajax KeyPad Outdoor Jeweller is a rugged, wireless security keypad engineered for outdoor and indoor access control within Ajax security systems. Designed to integrate seamlessly with an Ajax Hub using the secure Jeweller radio protocol, the keypad lets authorized users arm and disarm the system, control security modes, and trigger automation scenarios through multiple authentication methods. Built to withstand varying environmental conditions, it ensures reliable access control at entrances, gates, garage doors, and other strategic points.

Key Features

• Wireless outdoor and indoor keypad for Ajax security systems
• Secure two-way communication via Jeweller radio protocol
• Arm and disarm the system, control groups, and activate Night mode
• Access via keypad code, DESFire® Pass card, Tag key fob, or Bluetooth smartphone
• Protection from code guessing and access device copying
• Supports personal, general, and temporary access codes
• Weatherproof IP66 enclosure for dust and water protection
• IK08 impact resistance for outdoor durability
• Operating temperature range from –25°C to +60°C
• Power supply: 2 × CR123A batteries with long battery life
• Optional external power supply 10.5–14 V DC with batteries as backup
• LED indication and built-in buzzer for system status and alarms
• Remote configuration and management through the Ajax app
• Removeable 12V terminal board to simplify wiring
• Jeweller antenna for up to 5500 ft range
• Tamper buttons and holding screw
• Smart bracket
