Ajax DomeCam Mini Wired POE Infrared (IR) CCTV Surveillance Camera with AI People, Vehicle, Animal Object Recognition, 5 - 8 MP Resolutions, 75-110 Viewing Angle, NDAA Compliant

Coming soon

Product Description:

Ajax DomeCam Mini is an NDAA-compliant, high-quality, and wired IP security camera designed for outdoor surveillance, combining advanced technologies and sturdy construction to ensure reliable operation in various conditions.

Key Features:

• The built-in AI features allow the camera to recognize objects, including people, animals, and vehicles, improving motion detection accuracy and reducing the number of false alarms
• Smart IR illumination provides clear visibility up to 15 meters (49 Ft) even in low-light conditions.
• Supports the use of microSD memory cards up to 256 GB (recommended for home use) and can be connected to an NVR to expand video storage capabilities

• Built-in accelerometer reports dismantling and impacts
• Operates in a wide temperature range from -13 - 122 F
• Easy installation and setup thanks to support for password-free authentication and secure cloud access
• Compatibility with Ajax central panels simplifies adding the camera to your existing security system
• Visual verification of Ajax alarms - the system allows you to set up a scenario where the Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile app.

• Dust and waterproof - IP65 casing
• Microphone to record high-quality sound

Recommended products to purchase with this camera is a POE Switch and Cat5e or Cat6 Ethernet cable that is long enough to reach from the power source to the installation site.

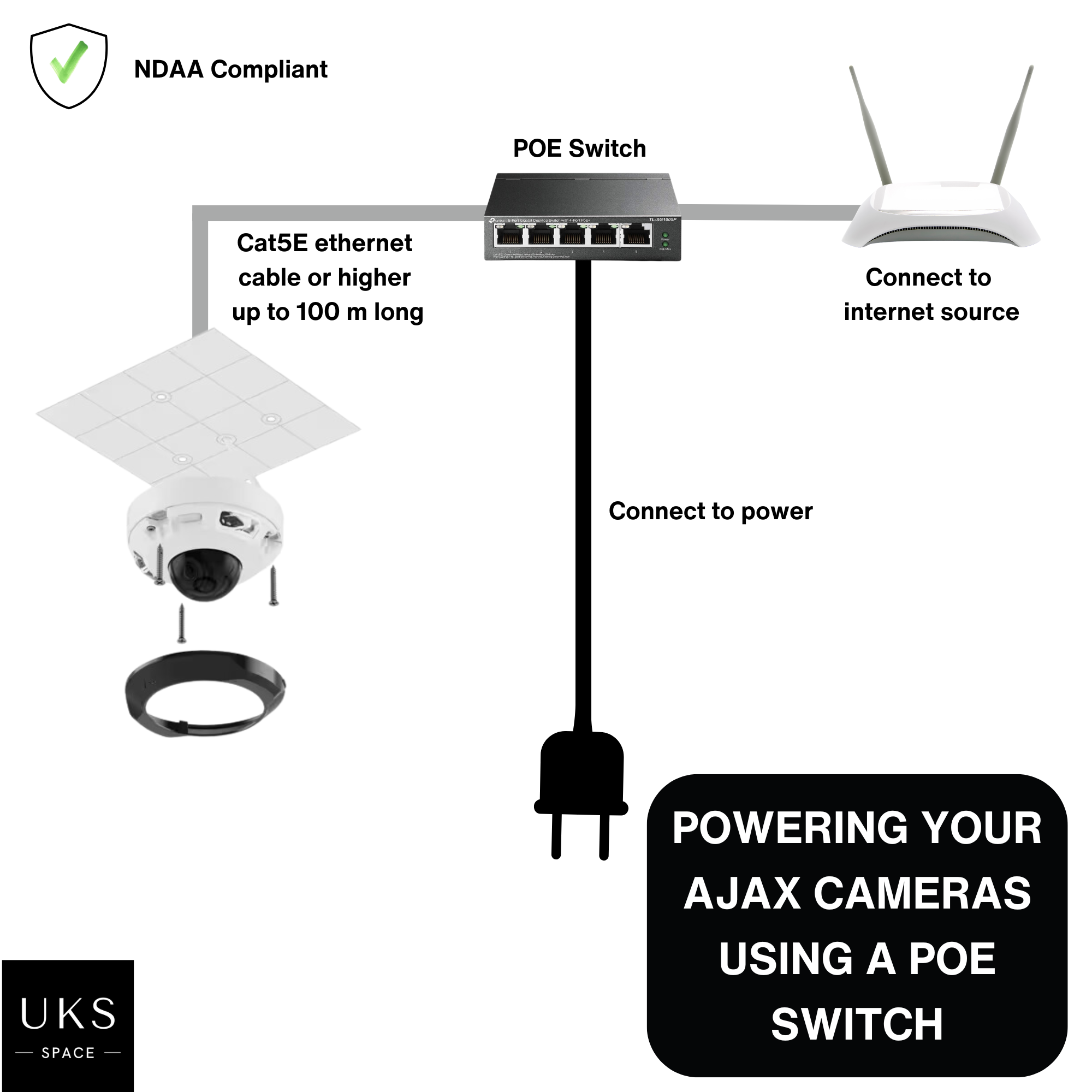

Powering the camera is simple

• Ensure you have a compatible PoE switch that supports the 802.3at standard (also known as PoE+), as the Ajax DomeCam Mini requires this for proper operation.
• Connect one end of the Cat5E Ethernet cable to an available PoE-enabled port on your PoE switch.
• Run the Cat5E cable to the location where you plan to install the DomeCam Mini.
• Connect the other end of the Cat5E cable directly to the Ethernet port on the Ajax DomeCam Mini.
• The camera should power on automatically as it receives power through the Ethernet cable. There's no need for a separate power adapter.
• Wait for the camera to boot up and establish a network connection with the Ajax cloud.

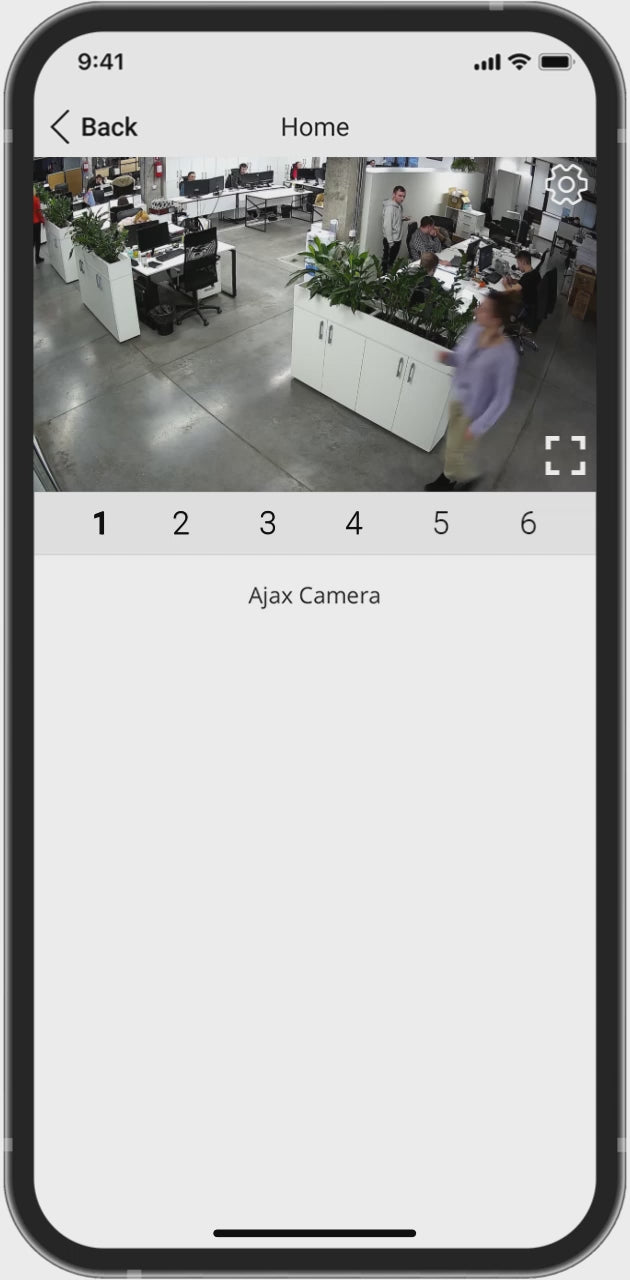

You can now add the camera in the Ajax app by scanning the QR code.

Important guidelines for the POE Switch:

• Ensure your PoE switch can provide sufficient power (up to 15W) as required by DomeCam Mini.
• Use a quality Cat5E (or better) Ethernet cable to ensure proper power and data transmission.
• The maximum cable length for PoE is typically 100 meters (328 feet). If you need to extend beyond this, you may need a PoE extender or injector.

Technical Specifications:

Download the User Manual
