Ajax LightSwitch (1-gang) [120] Jeweller

Coming soon!

Product description

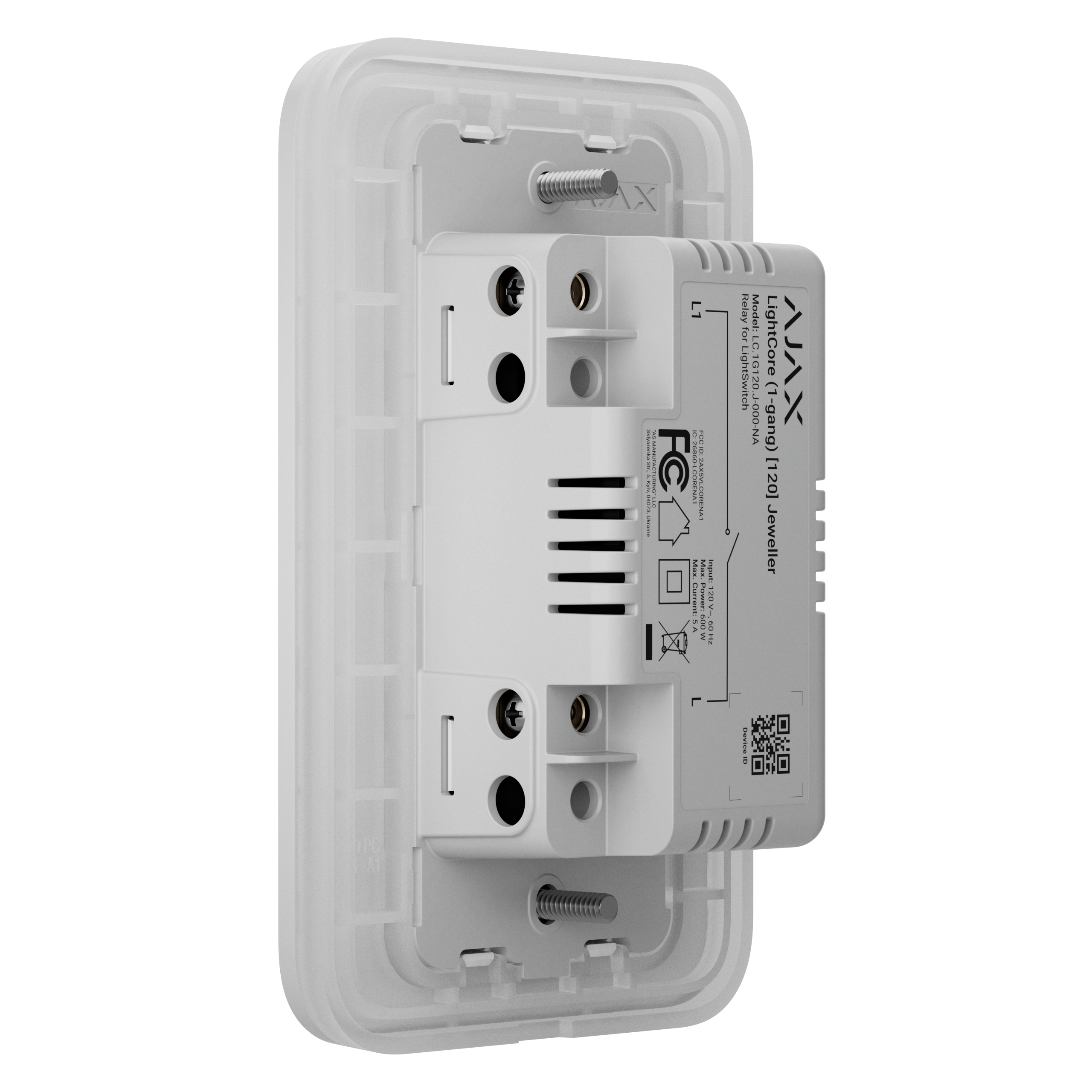

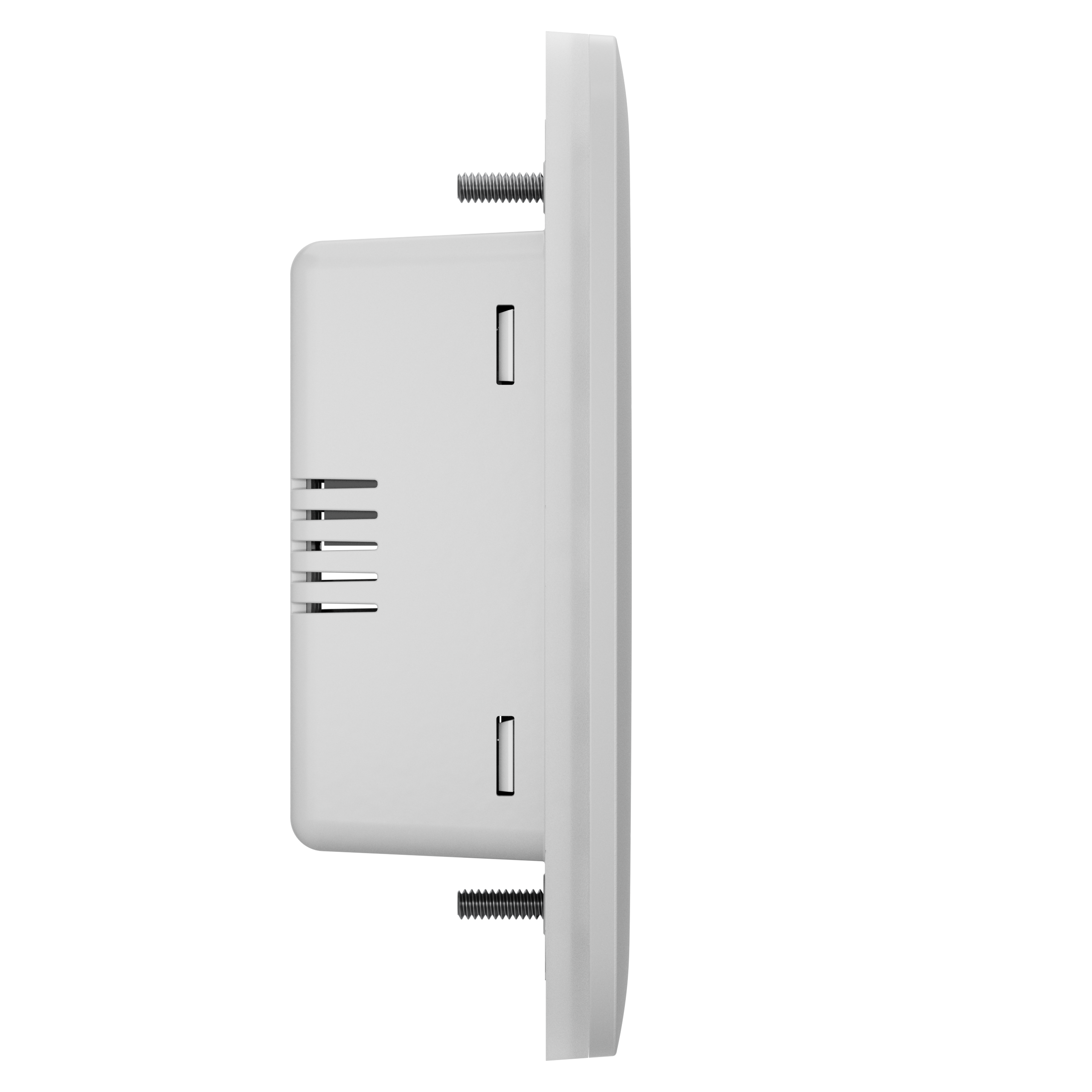

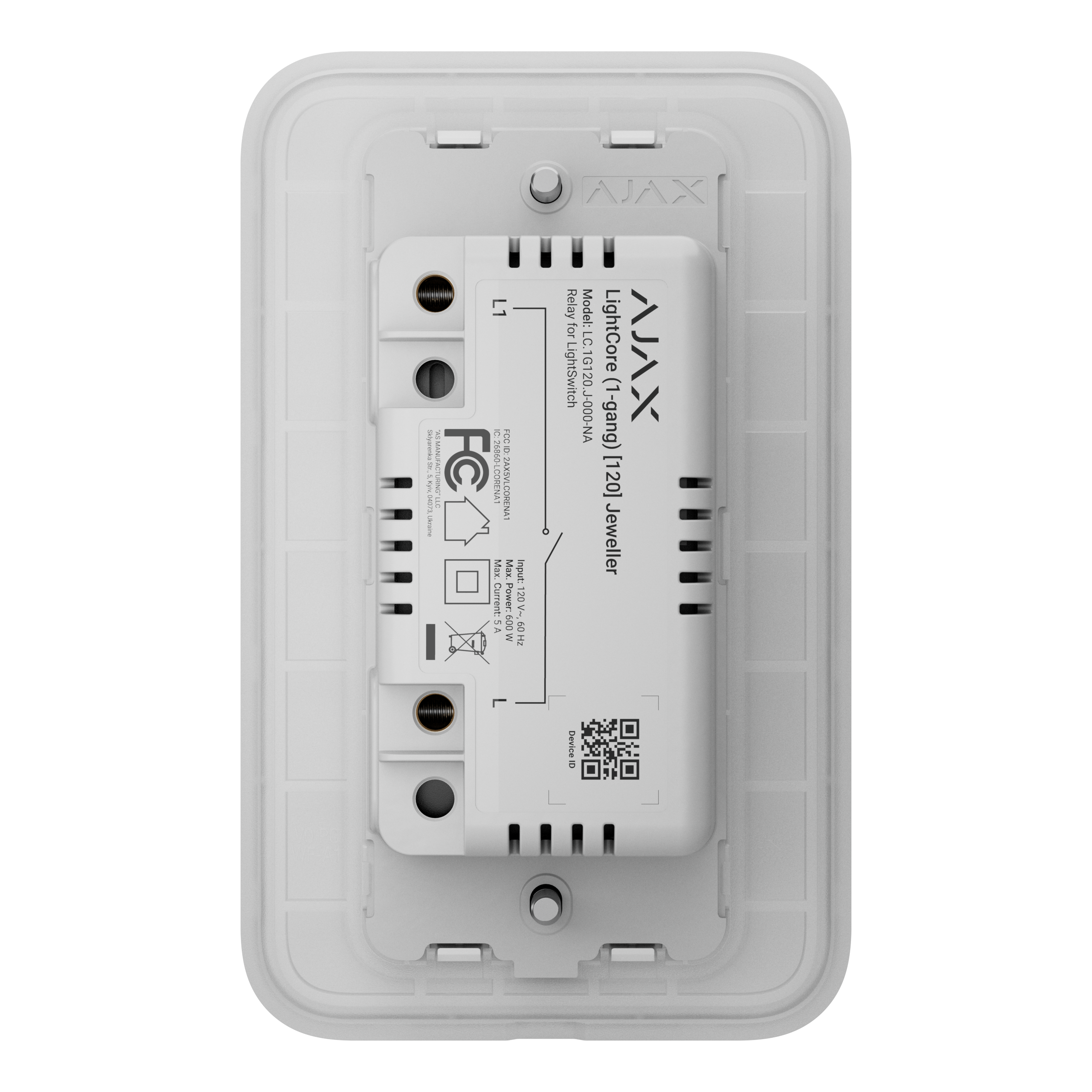

The LightSwitch [120] Jeweller series, which includes smart touch light switches designed for seamless lighting control and automation, is designed specifically for the North American market.  LightSwitch (1-gang) [120] Jeweller allows for controlling a single light source from one location. LightSwitch (1-gang) [120] Jeweller is a preassembled device. Each component is available for separate purchase. The components are easy to install by connecting them together.

Key Features

• Components:
  • Relay - Controls the power of a lighting device
  • Touch Panel - Colored touch front panel for the light switch
  • Frame - Plastic frame for installing 2 to 5 switches in a row
• LightSwitch (1-gang) [120] Jeweller can be installed either separately or within a frame as part of a set that includes other LightSwitch devices.

• Designed for any interior. The device can fit in with any interior, be it a cozy house, a high-tech office, or a production facility. An eight-color palette allows for choosing the switches that either contrast with the wall or blend in with the background.
• Lighting control via a smartphone. Switching the lights on/off is very convenient in Ajax apps — a control screen is always at hand. A user can be sure that all lights are off, even if they are far away from home or an office.
• Lighting automation scenarios. The light switches can be automatically activated when an Ajax system is armed/disarmed or when any device, such as an opening or motion detector, is triggered. This way, the light can deter an intruder. Also, any LightSwitch can be used to activate other Ajax device
• Comfort and security with one touch. The light switch panels respond to the approach of even a gloved hand. Turning the lights on and off is effortless, even when hands are dirty or need to remain clean. An optional soft backlight simplifies lighting control in the dark.
• Auto switch-off timer. The light switch allows for managing power consumption and reducing costs. It is also possible to set the light to turn off automatically after a certain period — from 1 second to 2 hours.
• Intuitive installation and connection. To add LightSwitch (1-gang) [120] Jeweller to the system, users must scan a QR code in Ajax apps and then configure the device in a few clicks. The smart light switch can be installed instead of the old one without replacing the mounting box and changing the wiring.
• Unique Jeweller technology. Encrypted two-way radio communication with a hub or a range extender in an open space reaches up to 1,100 m (3,600 ft).
• Wide compatibility with light bulbs. LightSwitch (1-gang) [120] Jeweller is compatible with a wide range of lighting fixtures, from incandescent light bulbs up to 500 W to CFL/LED up to 250 W.
